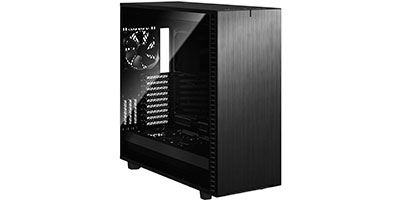

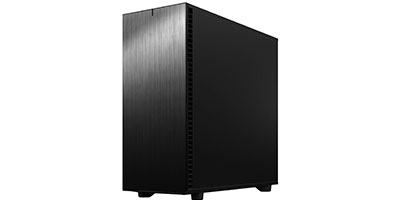

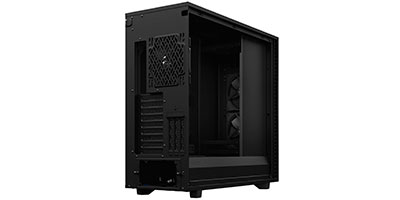

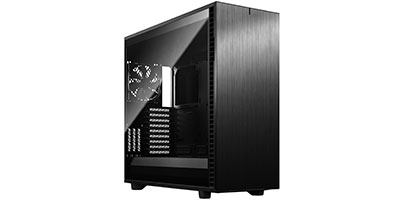

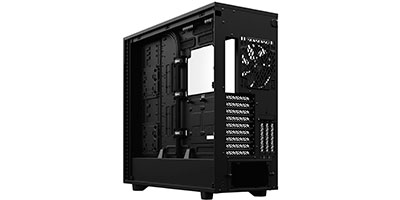

Fractal Design Define 7 XL Black TG Light Tint
מק"ט:
FD-C-DEF7X-02
אחריות:
שנה אחת
יצרן:
מפרט
סוג מארז
Full Tower
תאימות ללוח אם
ATX
\ Micro ATX
\ E-ATX
\ Mini ITX
ספק כח
ATX (not included)
Bays 5.25
2
Hard Drive 3.5
6 + 2 included, 18 positions total
Hard Drive 2.5
2 included, 5 positions total
Expansion slots
9+3
יציאות קדמיות
USB 2.0
\ USB 3.0
\ Earphone/Mic
\ USB Type-C
עיצוב תרמי
Front fan
4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Rear fan
1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
גובה מקסימלי קירור למעבד (ממ)
180
מידות
604 x 240 x 566 mm
פילטר אבק
שליף
מידע
| Plenty of room for massive builds Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering Ventilated PSU shroud with two-part removable cover Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans |
 |
 |
Superlative storage possibilities Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included) Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board Sturdy new HDD cage design with vibration damped trays 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size |
| Airflow and cooling Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering |
 |
 |
USB Type-C USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps |
| SSI-EEB Easily holds your SSI-EEB motherboard |
 |
 |
Moduvent Top panel effortlessly swaps from sound damped solid steel to filtered ventilation |
