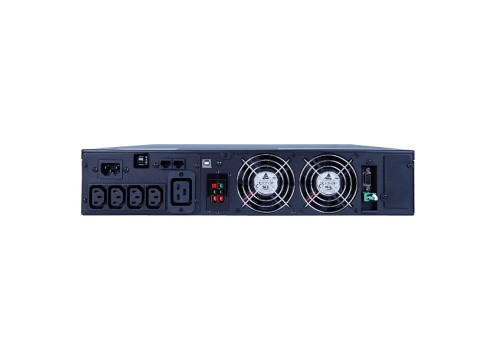

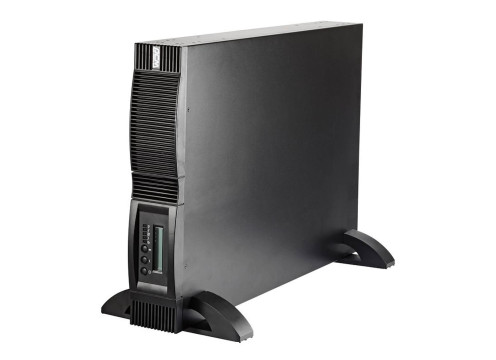

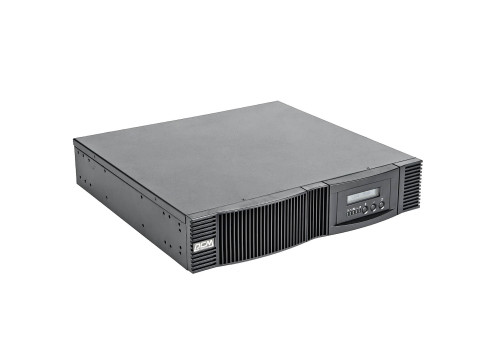

Powercom Vanguard II 3000VA Online UPS Rackmount
P/N:
VRT-3000
Warranty:
2 Years. Battery 1 Year Only
Manufacturer:
Specification
Information
Specification
UPS Power
3000VA
UPS Battery
12V 9Ah x 6
UPS Series
Online
Rackmount
Yes
Information
UPS
- Model: VRT-3000
- Capacity (VA): 3000
- Capacity (Watts): 2700
- Form: Tower or Rack
- Energy Saving: Yes - ECO mode Efficiency > 94%
INPUT
- Voltage: 100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac
- Voltage Range:
- 120 ~ 276 Vac < 25% Load
- 140 ~ 276 Vac < 50% Load
- 160 ~ 276 Vac < 75% Load
- 180 ~ 276 Vac < 100% Load
- Frequency Range: 50 / 60 Hz (Auto Sensing)
- Power Factor: > 0.97
- Cold Start: Yes
OUTPUT
- Rated Power Factor: 0.9
- Waveform: Pure Sine Wave
- Voltage: 100 / 110 / 115 / 120 / 127 / 208 / 220 / 230 / 240 Vac ± 2%
- Frequency: 50/60 Hz ± 0.25 Hz
- Transfer Time: 0 ms
- Harmonic Distortion: ≤ 2.5% THD at Linear Load
- Crest Factor: 3:1
PROTECTION
- Overload:
- Line Mode:
- 105% - 120% for 30 seconds
- 121% - 150% for 10 seconds
- Battery Mode:
- 101% - 109% for 10 seconds
- 110% - 120% for 3 seconds
- Surge Protection: IEC 61000-4-5 Level 3
- Bypass: Internal Bypass(Automatic and Manual)
- Short Circuit Protection: UPS Output Cut Off Immediately
BATTERY
- Model: VRT 3000
- Type: 12V 9Ah
- Quantity: 6
- Sealed, Maintenance Free: Yes
- External Battery Module: Option
- External Battery Connector: Option
MANAGEMENT
- Indicator: LCD Control Panel
- Communication Port: RS232, USB (Type-B)
- SNMP Slot: Option
