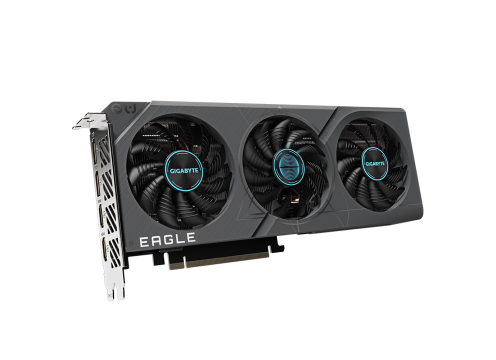

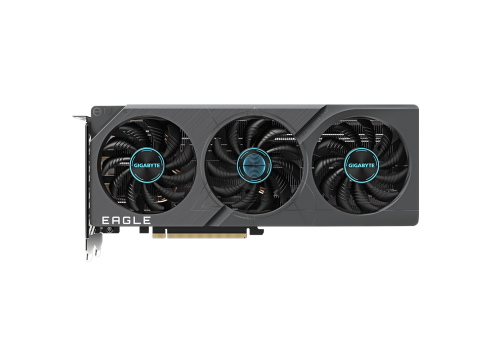

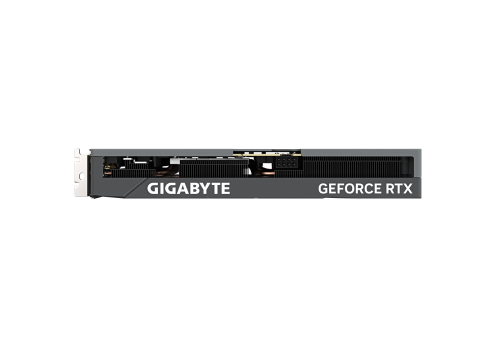

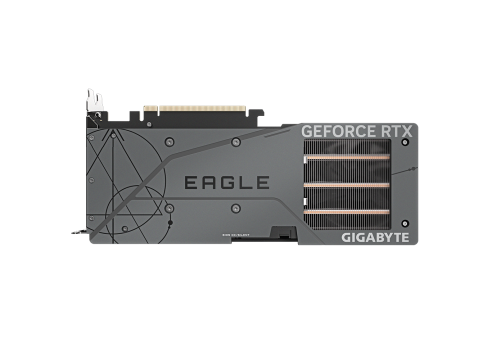

Gigabyte GeForce RTX 4060 Ti (DLSS 3) GV-N406TEAGLE OC-8GD

P/N:

N406TEAGLEOC8GD

Warranty:

3 Years

Manufacturer:

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing. 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering. 3rd Generation RT Cores: Up to 2X ray tracing performance. Powered by GeForce RTX™ 4060 Ti (8GB). Integrated with 8GB GDDR6 128bit memory interface. WINDFORCE cooling system. Dual BIOS. Protection back plate.
Specification
Information

Specification

Graphics Processor

NVIDIA GeForce RTX 4060 Ti

Core Clock

2550 MHz

Memory Clock

18 Gbps

VGA Card Memory Size

8GB

Graphic Memory Type

GDDR6

Memory Bus

128 bit

Multi Display

Max Resolution

7680 x 4320

Card Size

L=272 W=115 H=41 mm

DirectX

12 Ultimate

OpenGL

4.6

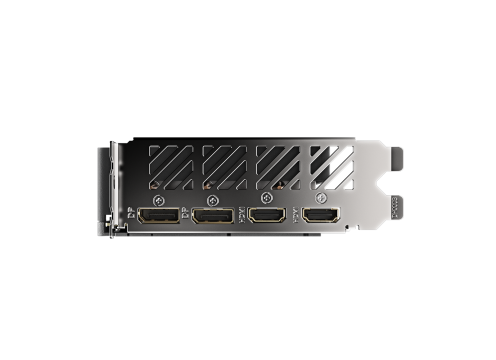

Graphics Interface

HDMI
\ DisplayPort

Card Bus

PCI-E 4.0 x16

Recommended PSU

500W with Power Connectors 8 pin*1

Cooling

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

Package

Retail

Information

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning,

3 composite copper heat pipes directly touch the GPU,

3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
