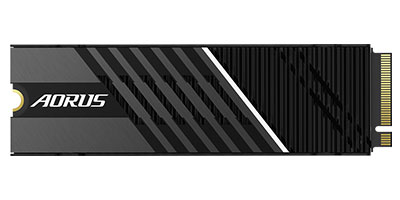

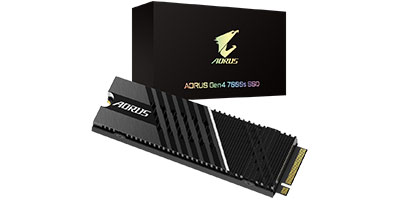

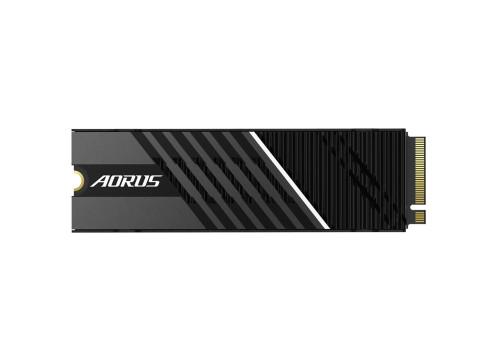

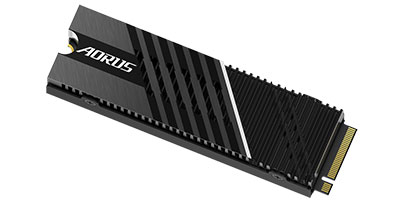

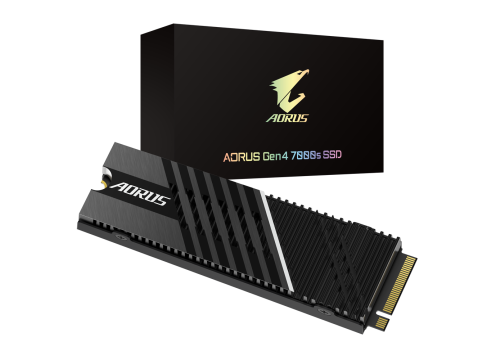

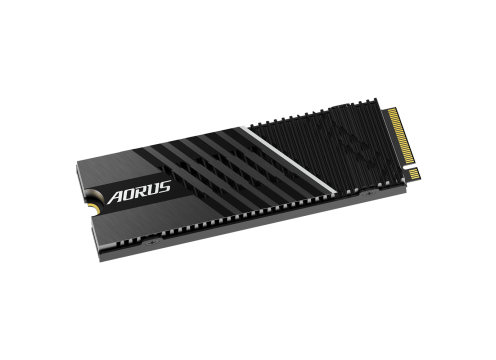

Gigabyte AORUS SSD 1.0TB M.2 PCIE NVMe Gen4 7000s
P/N:
GP-AG70S1TB
Warranty:
5 Years
Manufacturer:
The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
Specification
Disk Type
M.2 2280
SSD Capacity
1TB
Interface
PCI-E x4
Storage Memory
TLC
\ 3D/V NAND
Read Speed
Up to 7000MB/s
Write Speed
Up to 5500MB/s
Features
TRIM
\ DATA Encryption
\ S.M.A.R.T
\ Temperature proof
Package
Retail
Remarks
+ PCIe 4.0x4, NVMe 1.4 Interface
+ DDR4 DRAM cache
+ 8 CH with 32 CEs
+ Phison 4th Gen LDPC & RAID ECC
+ Support AES-256 Encryption
+ Thermal Throttle Protection
Information
| 2nd Generation PCIe 4.0x4 Controller The 2nd generation PCIe 4.0 controller PS5018-E18 deliver sequential read/write up to 7GB/s with 3D TLC NAND Flash. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4. |
 |
 |
Xtreme Storage Performance With 2nd generation PCIe 4.0 controller E18, AORUS Gen4 7000s SSD delivers blazing speeds: up to 7,000 MB/s for sequential read, and up to 5,500MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering. |
| Efficient Heat Spreader Design Compared with regular heat spreader, the new high efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS 7000s Gen4 SSD running 5 times longer at 7GB/s. Enjoy the smoother & upgraded storage performance. |
 |
