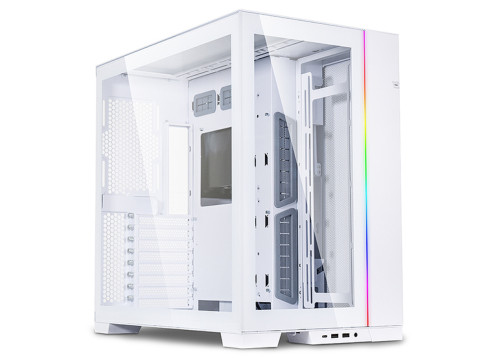

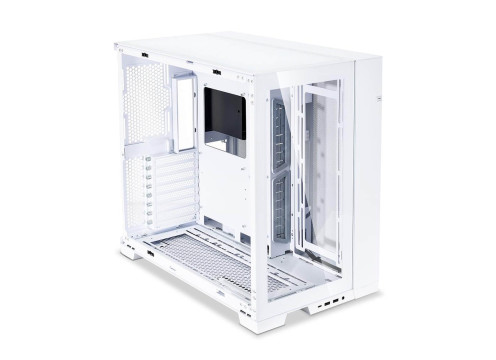

LIAN-LI Mid Tower Case O11DEW Dynamic EVO White

P/N:

PC-011DEW

Warranty:

1 Year

Manufacturer:

LIAN LI O11 Dynamic EVO O11DEW White Aluminum / Steel / Tempered Glass ATX Mid Tower Computer Case
Specification
Information

Specification

Case Type

ATX

MB Compatability

ATX
\ Micro ATX
\ E-ATX
\ Mini ITX

Hard Drive 2.5

13

Expansion slots

Front Connections

USB 3.0
\ Earphone/Mic
\ USB Type-C

Cooling

GPU Length Clearance 426 mm

CPU Cooler Height (mm)

165

Dimensions

D=465 W=285 H=459mm

Color

White

Remarks

DRIVE SUPPORT: Bottom: 2.5" SSD × 4 or 3.5" HDD × 2 | Side: 2.5" SSD × 4 or 3.5" HDD × 2 | Drive Cage: 2.5" SSD × 3 or 3.5" HDD × 2 + 2.5" SSD × 1 | Cable Management Bar: 2.5" SSD × 2

Information

  • Front and side tempered glass panels for components and RGB display
  • Supports up to 3x 360 radiators and a maximum of 10 fans
  • Offers 9 storage drives mounting space
  • Dual-chamber layout with hooks friendly cable management compartment
  • Number of PSU supported : 2
  • Five optional accessories: Vertical GPU Kit / Upright GPU Kit / Additional I/O kit / Front Mesh Kit / Top I/O Kit

VERSATILE ORIENTATION

With only a few steps, the O11D EVO can be flipped in reverse mode to experience a seamless front and side tempered glass showroom view on the right side of the chassis.

EXQUISITE, YET FUNCTIONAL

Following the style of the O11 Dynamic series, the aluminum panels feature an updated fine mesh which provides an optimal ratio of airflow and dust filtering.

INNOVATIVE AND FLEXIBLE CONFIGURATION

Featuring a modular design, the O11D EVO offers many configuration potentials when making use of optional kits, both for air cooling and water cooling.

UNRESTRICTED AIRFLOW

The more direct the airflow, the better the cooling performance. Thanks to the upright GPU kit and the front mesh kit, which makes the addition of 3 extra fans at the front possible, the O11D EVO can provide powerful and direct airflow to the GPU and the CPU.

UPGRADED VERTICAL GPUAIRFLOW

The upgraded vertical GPU kit provides more room for bottom-mounted fans and radiators to increase the cooling capability and efficiency of the O11D EVO. Users can either mount the GPU vertically at the lower position which provides 50mm of clearance at the bottom of the chassis, or the upper position for 90.5mm of clearance.

SUPREME THERMAL CONTROL

With the upright GPU kit, users can move their water-cooled GPU next to the motherboard. This opens up the main chamber of the chassis, allowing simpler and more efficient tube runs to reach the components, and creating a restriction-free chimney-style airflow that allows the top and bottom radiators to perform more effectively.

CLEAN LOOK

The O11D EVO keeps the front panel as clean as possible with a multi-directional power button that can be pressed from both the front and the side of the chassis.

PERSONALIZED ARGB LIGHTING STRIP

The front panel LED strip features 7 built-in lighting effects which can be controlled via the M button. An 8th mode is available to enable motherboard software synchronization or L-Connect control.
