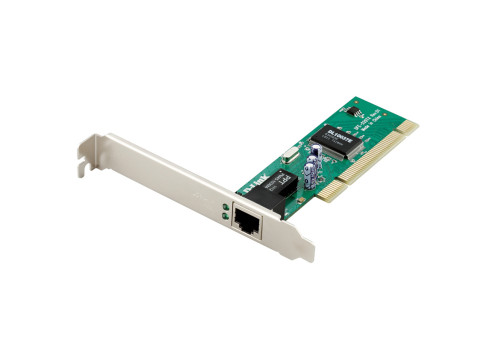

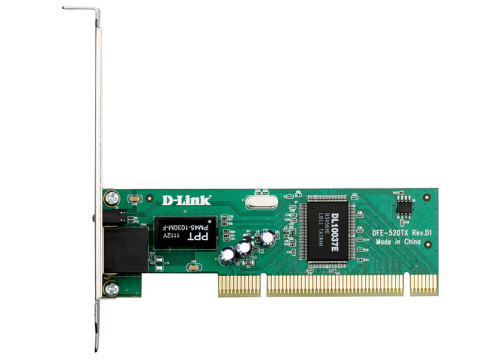

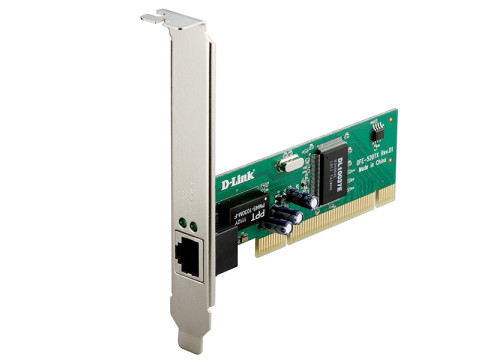

It can be installed in any PC equipped with a PCI expansion slot. This card makes extensive use of the single-chip technology and is equipped with an on-board FIFO buffer, providing your computer with a fast, reliable connection to an Ethernet network.
Powerful Performance
The DFE-520TX operates in the 32-bit Bus Master mode, delivering throughputs of multiple megabits per second, with little stress on the host CPU. The module transfers data directly to and from the host memory, bypassing bottlenecks in the system and alleviating the CPU workload. This allows your computer to concentrate on the application at hand, instead of the network operation task.
Versatile Functionality
The DFE-520TX single connector connects to either 10BASE-T Ethernet or 100Base-TX Fast Ethernet without the need for any configuration. It automatically detects and negotiates the highest available speed and duplex mode with the connected device for both 10Base-T and 100Base-TX modes.
Device Interfaces
• One 10/100Base-TX port
Standards
• IEEE 802.3i 10Base-T
• IEEE 802.3u 100Base-TX
• ANSI/IEEE 802.3 NWay auto-negotiation
• PCI local bus 2.3 specifications
Protocol
• CSMA/CD
Data Transfer Rates
• Ethernet: 10 Mbps (half-duplex) / 20 Mbps (full-duplex)
• Fast Ethernet: 100 Mbps (half-duplex) / 200 Mbps (full-duplex)
Additional Functions
• Wake-on-LAN:
Active high
Active low
Positive pulse
Negative pulse
Diagnostic LEDs
• 100M (speed)
• LINK/ACT
Physical Parameters
Dimensions
• 120 x 20 mm
Power Consumption
• Max: 0.37 W
Temperature
• Operating: 0 to 40 В°C
• Storage: -25 to 55 В°C
Humidity
• Operating: 5 to 90% non-condensing
Certifications
• CE Class B
• FCC Class B
• C-Tick
